Schema documentation for component TechnicalCodeListsType

Showing:

Annotations

Diagrams

Model

Source

Used by

Complex Type TechnicalCodeListsType

Namespace

org:afnor:medona:1.0

Annotations

CodeLists needed in Technical Description

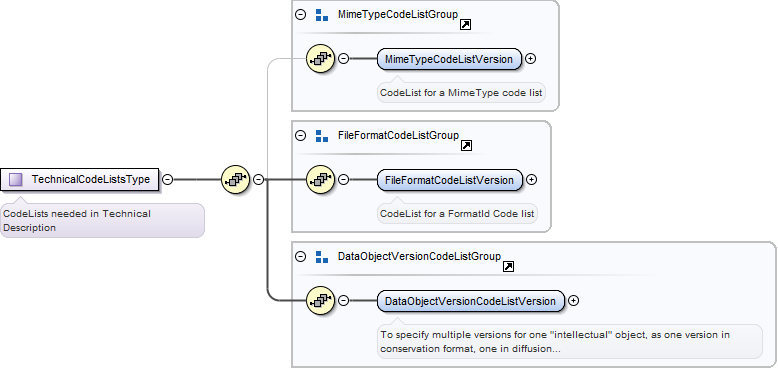

Diagram

Used by

Elements

TechnicalIdentityType/CodeListVersions, TechnicalMetadataType/CodeListVersions

Model

MimeTypeCodeListVersion , FileFormatCodeListVersion , DataObjectVersionCodeListVersion

Children

DataObjectVersionCodeListVersion, FileFormatCodeListVersion, MimeTypeCodeListVersion

Source

<xsd:complexType name="TechnicalCodeListsType">
  <xsd:annotation>
    <xsd:documentation>CodeLists needed in Technical Description</xsd:documentation>
  </xsd:annotation>
  <xsd:sequence>
    <xsd:group ref="MimeTypeCodeListGroup" minOccurs="0"/>
    <xsd:group ref="FileFormatCodeListGroup"/>
    <xsd:group ref="DataObjectVersionCodeListGroup"/>
  </xsd:sequence>
</xsd:complexType>

Schema location

file:/C:/Users/bregier/Documents/OxygenXMLEditor/Vitam-Schema/Seda2.0/technical-vitam.xsd
